SUCO Series 0168 Zinc-Plated Steel Diaphragm Pressure Switches

Overpressure Safety: Up to 4,350 psi (300 bar)
Burst Pressure Safety: Up to 5,800 psi (400 bar)
Pressure Sensing Type: Diaphragm pressure switch
Switching Function: SPST-NO (Normally Open) or SPST-NC (Normally Closed)
Pressure Connection: Female thread with compression-type fitting according to DIN EN ISO 8434-1 (formerly DIN 2353)
Housing Material: Zinc-plated steel body (Cr VI-free), HEX 24 mm (0.95″)

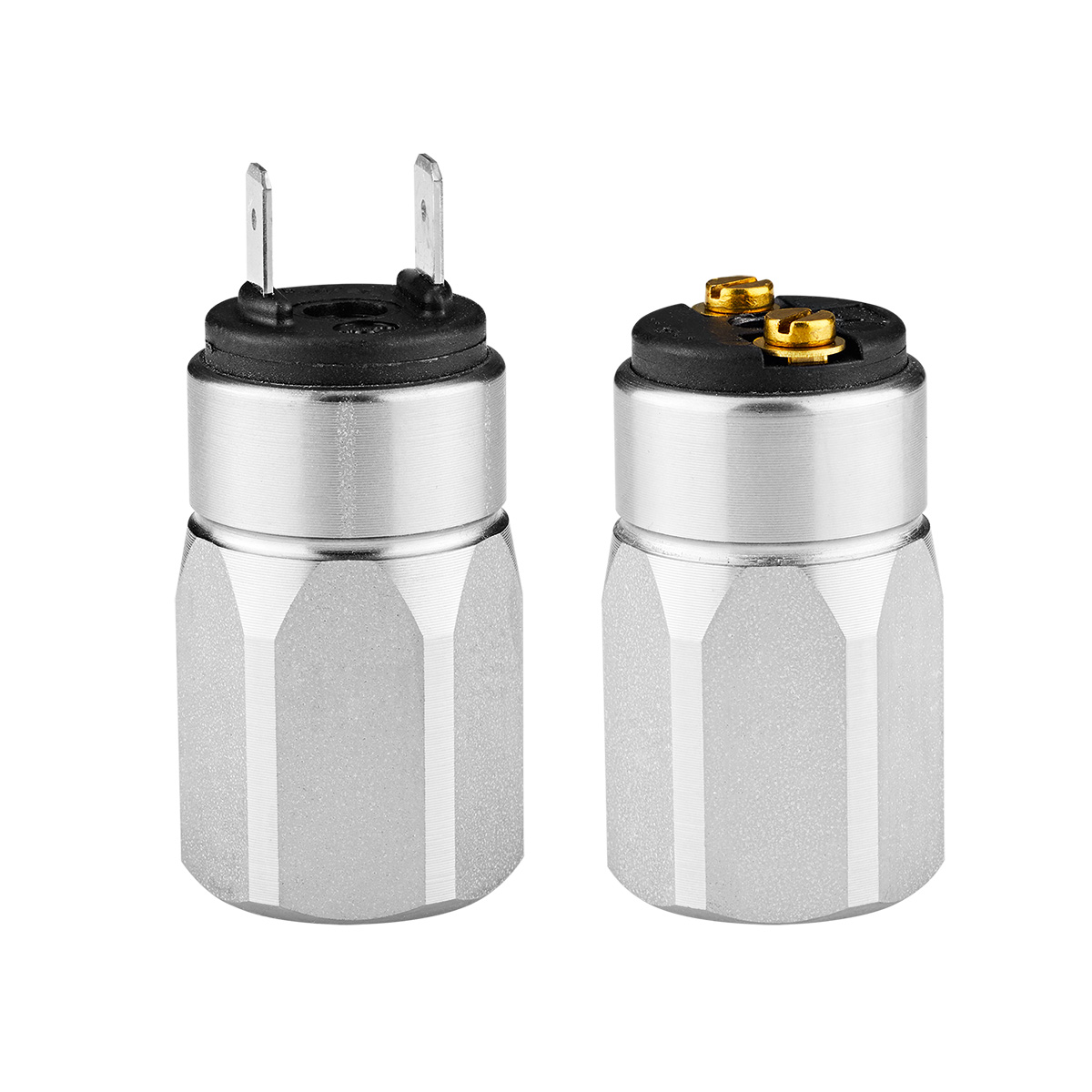

Electrical Connection: Spade terminals or screw terminals
Maximum Voltage: 42 V
Current Rating: 4 A resistive
Seal Material Options: NBR (Buna N), EPDM, FKM (Viton®), FFKM, HNBR

Compact, small-sized pressure switch for harsh mobile hydraulic and industrial applications with high system pressure. Also suitable for pneumatic applications.
A wide range of threads, seal material, and accessories are available.
Most cost-e fective solution for mechanical pressure monitoring.
Stable switching point even after long use and high load.
High pressure resistance, compact, small switches, available as normally closed (NC) or normally open (NO)

Model Number	0168
Pressure Ranges	0.1-1 bar (1.45-14.5 psi), 0.5 – 3 bar (7.25-43.5 psi), 1-10 bar (14.5 – 145 psi), 10-20 bar (145 – 290 psi), 20-50 bar (290 – 725 psi)
