Description

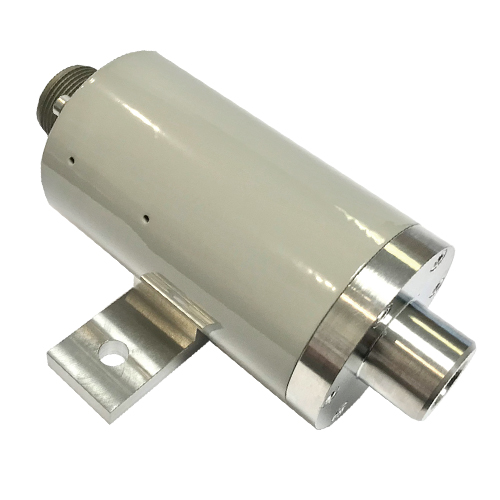

0710 Pressure Transmitters High-Performance Series:
- Silicon-on-Sapphire Sensor (SOS)
- Supply Voltage: 12-32 VDC
- Rise Rate: <72,500 psi/s (<5,000 bar/s)
- Burst Pressure: Up to 8x Pnom
- Standard or Customized Pressure Range Available
- IP67 Offered with Select Connectors
- Built-in Reverse Polarity Protection
- Response Time (10-90%): Max. 2 ms
Advantages:
- Housing / wetted parts made of stainless steel and titanium
- No seals and thus low leakage rate, even with difficult gases
- High-overpressure safety, especially suitable for use in hydraulic applications
- Long-working life, even with high rates of pressure cycles
- High-accuracy and reliability for secure process monitoring
- Very small size for compact sub-assemblies
