■ Vacuum Switch up to 42 V
■ SPST-NO or SPST-NC
■ Overpressure Safety: Up to 290 psi (35 bar)
■ Brass Housing
■ Submersion to 9,850 ft (3,000 mtrs) sea level
■ Ranges 0-200bar to 0-1,000 bar (0-2,900 psi to 0-15,000 psi)
■ NACE corrosion resistance
■ Diaphragm pressure switch
■ Brass Body (HEX 24mm / 0.95″)
■ SPST-NO or SPST-NC configuration options
■ Overpressure safety: Up to 500 psi (35 bar)
■ 0-50 bar (0-750 psi DP) sensing range
■ 690 bar (10,000 psi) line pressure
■ Submersion to 9,850 ft (3,000 meters) sea level
■ Accuracy rating ≤ ±0.25 % of span BFSL
■ Output Signal: 0.5-4.5V ratiometric, 4-20mA, 0-5 VDC (3 wire), 0-10 VDC (3 wire)
■ Pressure ranges from 14.5 psi to 1,450 psi (0.5 bar to 100 bar)
■ Strain gauge technology
■ Pressure ranges 0-500mbar to 0-700bar (0-7.5psi to 0-10,000psi
■ Output options 0-20mVdc, 0-5Vdc, 0-10Vdc and 4-20mA
■ Pressure ranges: 0–500 mbar to 0–1,500 bar (0–7.5 psi to 20,000 psi)
■ Silicon-on-Sapphire sensor technology for outstanding accuracy and stability
■ Accuracy: ±0.25%
■ Pressure ranges to 1,500 bar (21,755 psi)
■ Excellent corrosion resistance
■ Silicon-on-sapphire sensor technology
■ 4-20 mA two-wire output
■ Ranges 0-10 bar to 0-1500 bar (0-150 psi to 0-20,000 psi)

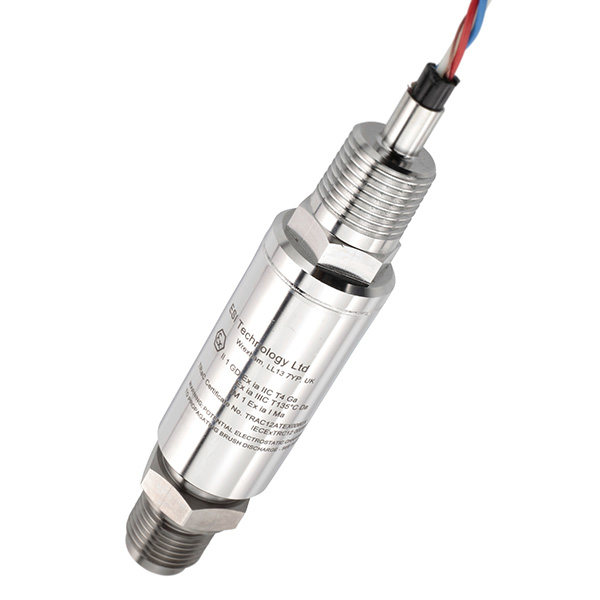

■ ATEX certified for hazardous areas: zone 0 gas group IIC, temperature class T4 and zone 20 dust
■ Pressure ranges 0-1bar to 0-1,500bar (0-15psi to 0-21,000psi)
■ Titanium wetted parts
■ High operating temperature up to 150°C (300°F)
■ Pressure measurement ranges up to 5,000 bar (72,500 psi)
■ Silicon-on-sapphire sensor technology, providing superior accuracy, thermal stability, and long-term reliability
■ Wetted parts constructed from titanium alloy for superior durability
■ Pressure ranges from 14.5 psi to 1,450 psi (0.5 bar to 100 bar)
■ Absolute, Gauge and Vacuum pressure ranges
■ Excellent corrosion resistance over a wide variety of industrial processes
■ Sample rate up to 1,000 Hz (1,000 readings per second)
■ Choice of pressure ranges from vac to 72,500 psi (5,000 bar)
■ USB 1.1 and USB 2.0 full speed compatible
